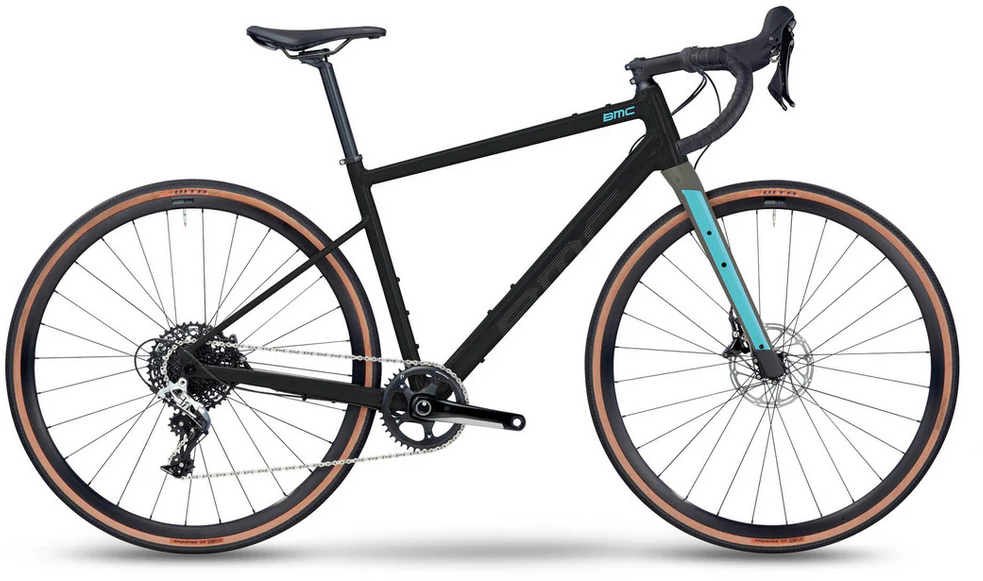

BMC BMC Roadmachine AL X TWO - 2025

The Roadmachine AL X TWO features a robust frameset that handles all the rough stuff. The Premium Aluminum frame and carbon fork were designed using TCC Gravel technology, with Gravel+ geometry. They feature fender, rack and cargo mounts, hub dynamo cable routing, a round seatpost and a mixture of Shimano’s GRX and Deore components and 32mm WTB tires on XRD-522 wheels.


Frameset
Frame:
Roadmachine X Premium Aluminum with Tuned Compliance Concept Gravel | Gravel+ Geometry | Internal Cable Routing | Fender and Rack Mounts | Flat Mount Disc | 12 x 142mm Thru-Axle

Fork:
Roadmachine X Carbon with Tuned Compliance Concept Gravel | Internal BRake & Hub Dynamo Cable Routing | Fender Mounts | Cargo Mounts | Flat Mount Disc | 12 x 100mm Thru-Axle | Side Mounts

Cockpit
Stem:
BMC RSM 01

Handlebar:
BMC RAB 03 | Ergo Top Shape | Compact Bend

Seat
Seatpost:
BMC RSP 03

Saddle:
Selle Royal

Drivetrain
Crankset:
SHIMANO GRX 600

Chainrings:
SHIMANOrings

Cassette:
SHIMANO Deore

Cassette Size:
11-36T

Chain:
SHIMANO

Rear Derailleur:
SHIMANO GRX 400

Shifters:
SHIMANO GRX 400

Gears:
2 x 10

Bottom Bracket:
PF86 Bottom Bracket

Brakes
Brake Levers / Calipers:
SHIMANO GRX (BR-RX400)

Rotors:
SHIMANO SM-RT64

Rotor Size (F/R):
160 / 160mm

Wheels
Rims:
XRD-522 | Tubeless Ready | 25 mm

Hubs (F/R):
XRD-522

Tires:
WTB Expanse | 32mm

Tubeless Information:
Tubeless Ready Rims | Tubetype Tires

Additional Information
Tire Clearance:
45mm
